The Deutsch Autosport AS SERIES connector was developed from the MIL-C-38999 Series 1.5 (Eurofighter connector), the AS Series was the first range of high specification connectors designed specifically for the autosport market. The AS Series offers weight and space saving over standard military designs and is available in a wide variety of options, with medium and high density arrangements, up to 128 ways,4 shell styles, and 5 keyway orientations.
Features
41-Way Autosport AS Series Connector
Body Style 1 (Inline receptacle) With Pins
Shell Size 20, Contact Arrangement 20-41
A Keyway-Yellow Band
41x 20awg Pins (Accepts 24,22,20awg Wire) Max 7.5A
For Replacement Contacts Use Part Number MC05-83894120-P
Connector Overall Dimensions (Excluding Boot) Length 34x38mm

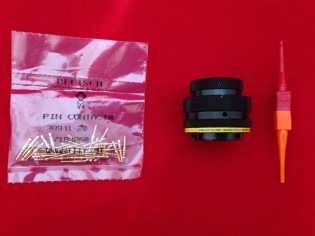

Includes connector body, contacts & Insert/Extract Tool
