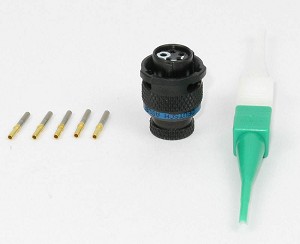

Deutsch ASL606-05SB-HE

£23.99

Out of stock

Out of stock

Product Type Features

Assembly Type : Electrical Connector
Product Type : Connector
Connector System : Wire-to-Wire
Shell Size : 6
Connector Style : Plug
Shell Type : Metal
Colour : Blue

Configuration Features

Number of Positions : 5
Preloaded : No
Keying : Key Polarization N
Factory Installed Backshell : No
Body Features

Feedthrough Type : No
Entry Style : Rear Insertion
Shell Plating Material : Black Zinc
Shell Material : Aluminum Alloy
Insulation Material : Hard Dielectric/Silicone
Hermetically Sealed : No
Environmental Protection : With
Environmental Protection Type : Sealed
Contact Features

Contact Layout Arrangement : 6 – 5
Contact Type : Socket
Mechanical Attachment

Polarization Code : N
Mating Alignment Type : Keyed
Mating Retention : With
Mating Alignment : With
Flange : Without
Mating Retention Type : Coupling Ring
Dimensions

Assembly Length (mm): 19.2
Usage Conditions

Operating Temperature Range (°C): -55 – 170
IP Dust Sealing Level : 6
Fluid Resistance : Immersible
IP Water Sealing Level : 7
Operation/Application

Durability Rating (Cycles): 500
Other

Field Serviceable : Yes
