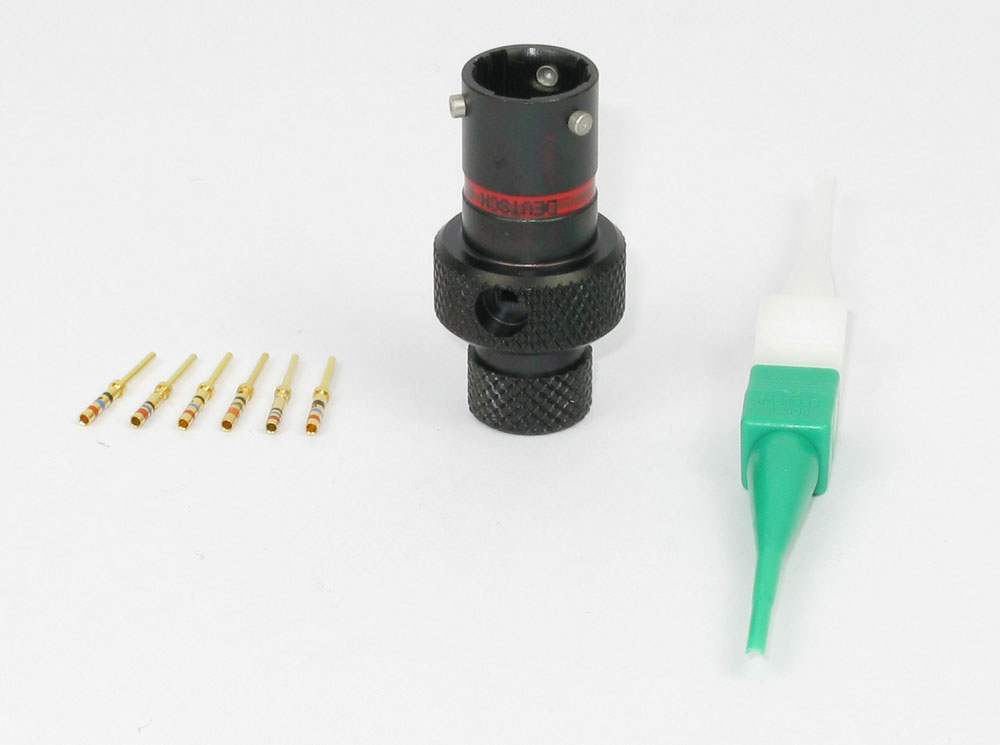

Deutsch AS108-35PN

Product Type Features

Assembly Type : Electrical Connector
Product Type : Connector
Connector System : Wire-to-Wire
Sealable : Yes
Shell Size : 8
Connector Style : Receptacle
Shell Type : Metal
Configuration Features

Number of Positions : 6
Preloaded : No
Keying : Keyway Polarization N
Factory Installed Backshell : No
Body Features

Feedthrough Type : No
Entry Style : Rear Insertion
Shell Plating Material : Black Zinc
Shell Material : Aluminum Alloy
Insulation Material : Hard Dielectric/Silicone
Hermetically Sealed : No
Environmental Protection Type : Sealed
Environmental Protection : With
Contact Features

Contact Layout Arrangement : 8 – 35
Contact Type : Pin
Contact Quantity (Size 22D) : 6
Mechanical Attachment

Polarization Code : N
Mating Alignment Type : Keyed
Mating Retention : With
Mating Alignment : With
Flange : Without
Mating Retention Type : Bayonet Peg
Dimensions

Assembly Length (mm): 33.5
Wire/Cable Size (AWG): 22
Usage Conditions

Operating Temperature Range (°C): -55 – 175
IP Water Sealing Level : 7
IP Dust Sealing Level : 6
Fluid Resistance : Immersible
Operation/Application

Durability Rating (Cycles): 500
Other

Field Serviceable : Yes
